K61 Controller Card

K61 Controller Card

K61 controller card is based on the K61 controller which has ARM Cortex-M4 core. K61 Controller is used as a processing unit. It operates up to 120MHz. Non-multiplexed mode bus architecture features a 16 bit data and 30 bit address bus. Dimension of the card is double euro size 233.4 mm X 160 mm X 1.6mm.

Controller:

  • ARM Cortex-M4 core uses ARMv7 architecture and ThumbR-2 ISA.
  • Operates Up to 120 MHz.
  • The internal memory is 512/1MB Internal Flash, 128 KB RAM and 16 KB EEPROM.
  • External Bus interface:Controller features 16 bits address and 16 bit data bus in non-multiplexed mode. In multiplex mode 32 bits address /data can be used. In non-multiplex mode bus address can be extendable up to 30 bit max.
  • Controller has an internal 4 ADC, 2 DAC, Timers, CAN, USB and an Internal RTC.

Memory

  • FLASH : Internal-512KB /1MB
  • SRAM : Internal- 128KB
  • External : 2MB (1M X 16 bit)
  • EEPROM : Internal- 16KB (optional)

Card Features and Interfaces

Card Supports 10 UART Channels up to 230400 baud rate.

  • Card supports two RS232port interfaces with programmable baud rate up to 230400 baud.
  • Card supports two RS422 port interfaces with programmable baud rate up to 230400 baud.
  • Card supports 6 RS-485 port interfaces with programmable baud rate up to 230400 baud.

Card supports one channel of 10/100Mbps Ethernet Ports.

Card supports 2 channels of CAN 2.0 up to 1Mbps.

Card supports 2 channels of 16 bit resolution Binary/Gray SSI interface.

Card supports 12 analog channels.

  • Card supports 4 ±10V analog input channels with 14 bit resolution
  • Card supports 8 ±10V analog output channels with 16 bit resolution

Card supports 16 optically isolated discrete outputs with 28V output

Card supports 16 optically isolated discrete inputs with 28V input

Card supports 2 PWM output channels with maximum operating frequency of 2 KHz and voltage of 5V.

Application:

  • Antenna Control System
  • General Purpose CPU Board

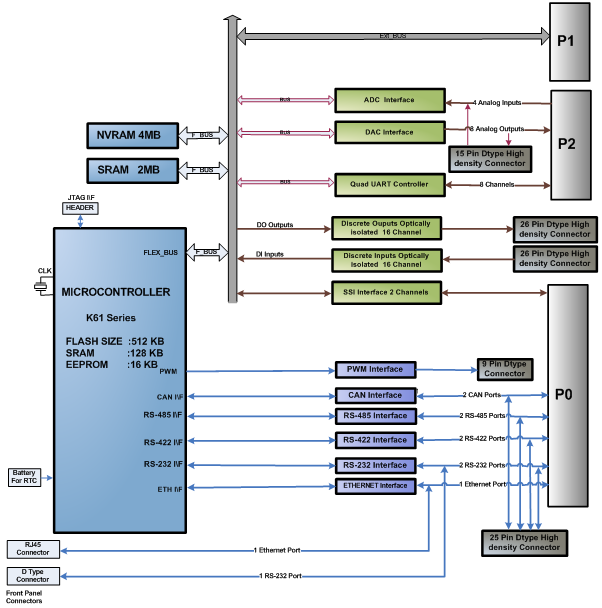

k61

Communication Interfaces

1 RS 232 Specification
No of Ports 02
Type 3 wire (Tx, Rx and Gnd)
Data width 8 bits
Baud rate Up to 230400
2 RS422 Specification
No of Ports 02
Type Differential (Tx+, Tx-, Rx+, Rx- and Gnd)
Data width 8 bits
Baud rate Up to 230400
3 RS485 Specification
No of Ports 06
Type Differential (Tx+, Tx-, Rx+, Rx- and Gnd)
Data width 8 bits
Baud rate Up to 230400
4 Ethernet Specification
No of Ports 01
Type Differential (Tx+, Tx-, Rx+, Rx- and Gnd)
Protocol UDP / TCPIP
Speed 10 / 100 Mbps
5 CAN Interface Specification
No of Ports 02 (Internal)
Protocol CAN 2.0
Bit rate Up to 1 Mbps

SSI Interface

1 SSI Interface Specification
No of Ports 02
Type Differential DATA+, DATA-, CLK+, CLK- and Gnd
Format Binary / Gray
Bit rate Up to 1.5 Mbps

Analog & Discrete I/O Specifications

No. Interface Specification
1 Analog Inputs
No of Inputs4 Nos.
Resolution14bits
Input TypeSingle ended Channels
Input Measurement typeVoltage
Input Voltage range±10V
IsolationNon Isolated
Accuracy0.2% of Full-scale range
Sampling Rate50K Samples
2 Analog Outputs
No of Outputs8 Nos.
Resolution16bits
Output TypeSingle ended Channels
Output Measurement typeVoltage
Output voltage range±10V
IsolationNon Isolated
Update rate<1msec
Output current drive10mA per Channel
Sampling Rate25K Samples
3 Discrete Inputs
No of Inputs16 Nos.
Type+28V/OPEN
Input High+28V Nominal (+28V to +12V)
Input LowGND Nominal (Up to +10V)
IsolationOptically Isolated
Max Input Voltage+50VDC
Max Current drive10mA
ProtectionReverse voltage protection,Over voltage protection Max.+40VDC & +50V transitory peaks.
IndicationOn board LED
4 Discrete Outputs
No of Outputs16 Nos.
Type+28V/GND
Output High+28V
Output LowGND
IsolationOptically Isolated
Output TypeOpen collector Sink type
Current drive100mA
ProtectionProtection for CollectorShort to Field Supply,Reverse voltage protection,Over voltage Protection for Max. 50VDC. Over current protection for Max130mA.
IndicationOn board LED
5 PWM outputs
No of Outputs2 Nos.
Frequency Operating rangeSlew Speed value =2 KHz PWM pulse and Normal speed Value =1 KHz PWM pulse
High Voltage+5 V (>1.2V)
Low Voltage< 0.8V
IsolationOptically Isolated

Board Supply Specifications

No. Supply to the Board Type / Use
1 +3.3VDC Digital / CMOS
+5VDC Analog IOs
±15VDC Analog Input/output Reference
+28VDC Discrete Input/output Reference

Mechanical Dimension

  • Dimensions : Double Euro size 233.4 mm X 160 mm X 1.6mm

Environmental Specifications

  • Operating Temperature : -30°C to 50°C
  • Storage Temperature :-40°C to +70°C
  • Relative Humidity : 10% to 90% relative humidity, noncondensing.
