SSFDR Airborne System

SSFDR Airborne System

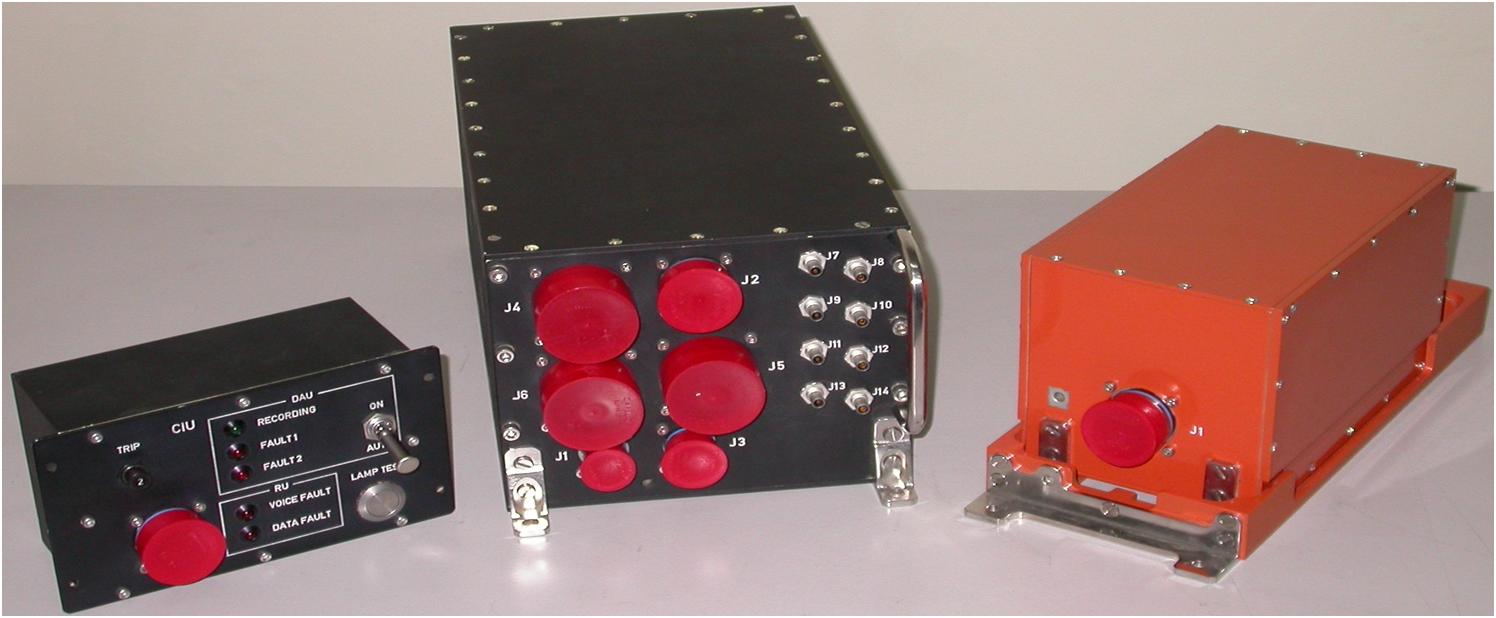

SSFDR is a three LRU (DAU, RU & CIU) Airborne system. It acquires data like analog signals, discrete signals, tacho, audio signals, MIL1553B data, ARINC 429 data and ARINC 717 data. A 10GB flash memory is integrated for Day to Day analysis. A crash protected memory of 320 MB is available. Data Milk out is through Ethernet Interface.

123SSFDR Airborne System

Project Scope

This was a total turnkey project of full product life cycle development involving requirements analysis, design & analysis, development, engineering, software development (Firmware & Device Drivers), system integration and testing and qualification of the system. System is qualified as per MIL-STD-810F and MIL-STD-461D.

LRU Architecture System Integration Testing Qualification and Validation

Features

  • Intelligent 3U cPCI bus based signal conditioning & data acquisition module, which will directly interface with the sensors.
  • Sensor input interfaces

    • > Voltage

    > Strain gauge

    > RTD

    > Thermocouple

    > TP scanner

    > AC/DC

    > Accelerometer

    > Synchro

    > Frequency

    > Discrete

    > IRIG – B & Fine events

    > GPS

    > Voice

  • Device Drivers : VxWorks & Linux
  • Automatic Test equipment
  • Standards Compliance

    • > Environmental : MIL-STD-810D

    > EMI/EMC : MIL-STD-461C,

    > PCB Grade : Conduction cooled IEEE-1101.2

Signal Conditioning Module cPCI Architecture Environmental Testing
